Technical Parameters

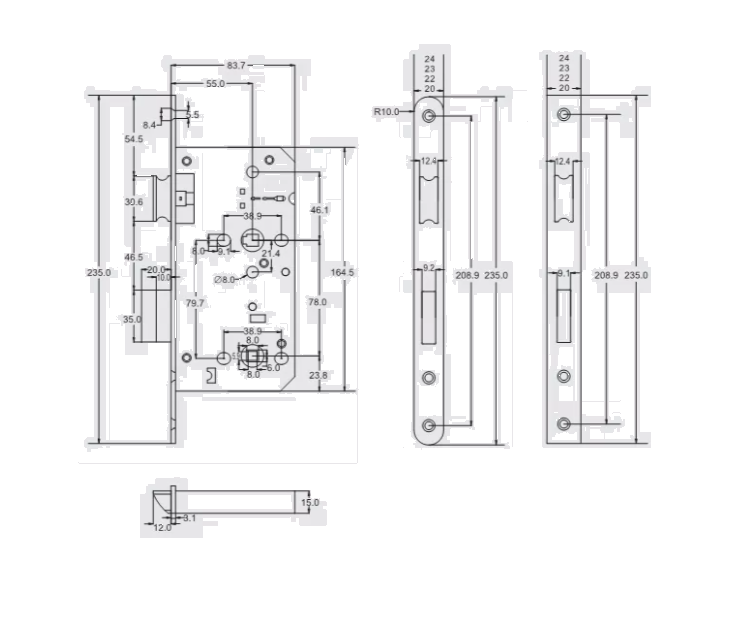

1. Center distance: 78mm Margin: 55mm
2.Locking case:Electrolyticlead-lead galvanized steel sheet SECC, Material:1.5mm 3.Square tongue (profile):SS304 stainless steel (durability: 50000 test cycle)4.Oblique tongue (precision casting):SS304 stainless steel (durability:200000 test cycle, 120N side pressure)
5.Panel: SS304, size 235*22*3mm, thickness 3mm 6.Dial (fine casting): Ss304
Hole size:8*8mm
7.Surface treatment: AB/AC/PB/PSS/SB/SSS
8.The performance meets the European standard EN12209,and the size conforms to the European standard Dn18251.
9.Lock core hole: European standard 33.5*16.9mm
