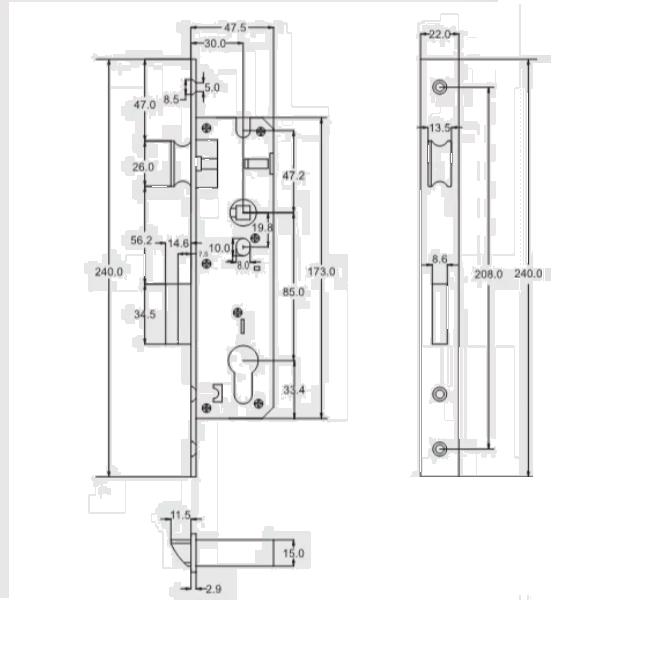

Mode!: MSK-3085-X
技术参数
1.中心距∶85mm 边距∶30mm
2.锁壳∶电解亚铅镀锌钢板SECC，材料∶1.5mm 3.斜舌∶锌合金
4.方舌∶不锈钢包铁（耐久性∶50000测试周期）5.面板∶SS201，尺寸240*22*3mm，厚度3mm 6.拨座∶锌合金 孔尺寸∶8*8mm 7.表面处理∶AB/AC/PB/PSS/SB/SSS 8.性能符合GB-201556-2008 9.锁芯孔∶欧标33.5*16.9mm
Technical Parameters
1. Center distance:85mm Margin: 30mm
2.Locking case:Electrolyticlead-lead galvanized steel sheet SECC,Material:1.5mm 3. Oblique tongue: zinc alloy
4.Square tongue:Stainless steel Iron (durability:.50000 test cycle)5.Panel: SS201,size 240*22*3mm, thickness 3mm 6.Dial:Zinc alloyHole size:8*8mm 7.Surface treatment: AB/AC/PB/PSS/SB/SSS 8.Performance isinline withGB-201556-2008
9.Lock core hole: European standard 33.5*16.9mm 9.Lock core hole:European standard 33.5*16.9mm
